The output stage has no influence on the curves, nor is it tied in any way to the different model types. It merely applies some harmonic distortion to the signal. Linear is very clean and applies virtually no extra harmonic content. The plots of the distortion can be found at the bottom of this post.
The EQ SAT function applies a subtle "smile" boost to the current EQ shape.
1. High Band shelf - 10 kHz - 3 db boost
2. High Band shelf - 10 kHz - 6 db boost
3. High Band shelf - 10 kHz - 12 db boost
4. High Band shelf - 10 kHz - 18 db boost
5. High Band shelf - 10 kHz - 3 db cut
6. High Band shelf - 10 kHz - 6 db cut
7. High Band shelf - 10 kHz - 12 db cut
8. High Band shelf - 10 kHz - 18 db cut
9. Mid Band - 2 kHz - 2 db boost
10. Mid Band - 2 kHz - 4 db boost
11. Mid Band - 2 kHz - 8 db boost
12. Mid Band - 2 kHz - 18 db boost
13. Mid Band - 2 kHz - 2 db cut
14. Mid Band - 2 kHz - 4 db cut
15. Mid Band - 2 kHz - 8 db cut

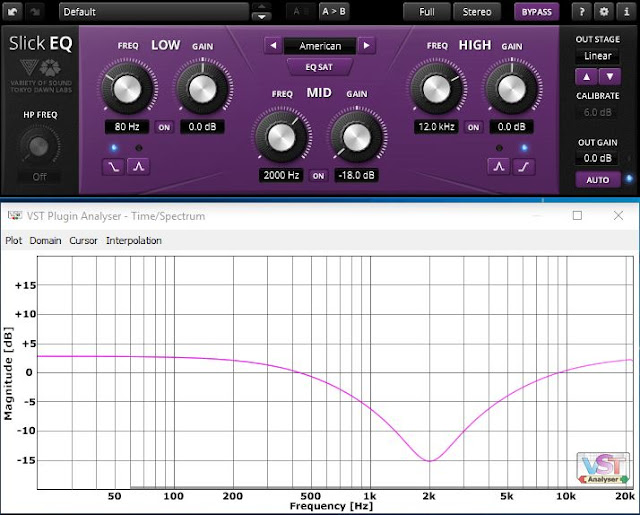

16. Mid Band - 2 kHz - 18 db cut
17. Low Band - 100 Hz - 3 db boost
18. Low Band - 100 Hz - 6 db boost
19. Low Band - 100 Hz - 12 db boost
20. Low Band - 100 Hz - 18 db boost
21. Low Band - 100 Hz - 3 db cut
22. Low Band - 100 Hz - 6 db cut

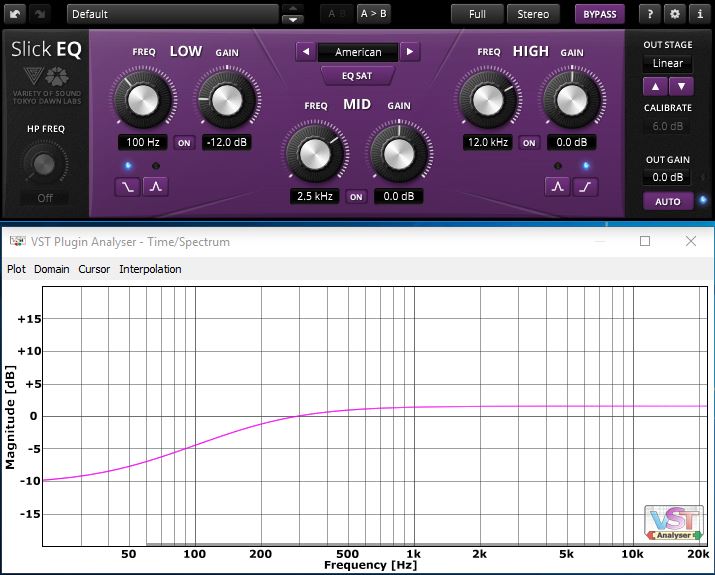

23. Low Band - 100 Hz - 12 db cut
24. Low Band - 100 Hz - 18 db cut
25. HP Filter 22 Hz
26. HP Filter - 33 Hz
27. HP Filter - 48 Hz

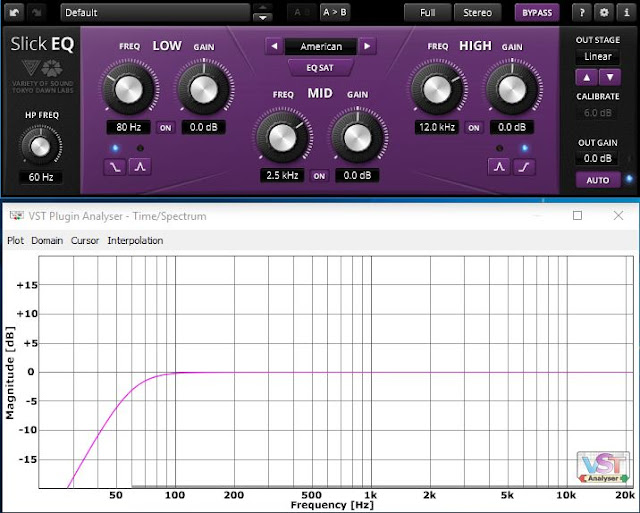

28. HP Filter - 60 Hz
29. HP Filter - 80 Hz
30. HP Filter - 120 Hz
31. Output Stage - Deep
32. Output Stage - Funky
33. Output Stage - Mellow
34. Output Stage - Silky
35. Output Stage - Linear
